Lightweight construction
8-13 LBS PER SF
A concrete wall system with a steel core, engineered to carry acoustic and durability requirements at a fraction of conventional system weight.
NWB Infinity Wall System
A concrete wall system with a steel core.
The Infinity Wall System was developed to reduce the burden of noise wall construction without compromising the requirements of the project. Less weight changes what a project has to mobilize, schedule, and support.

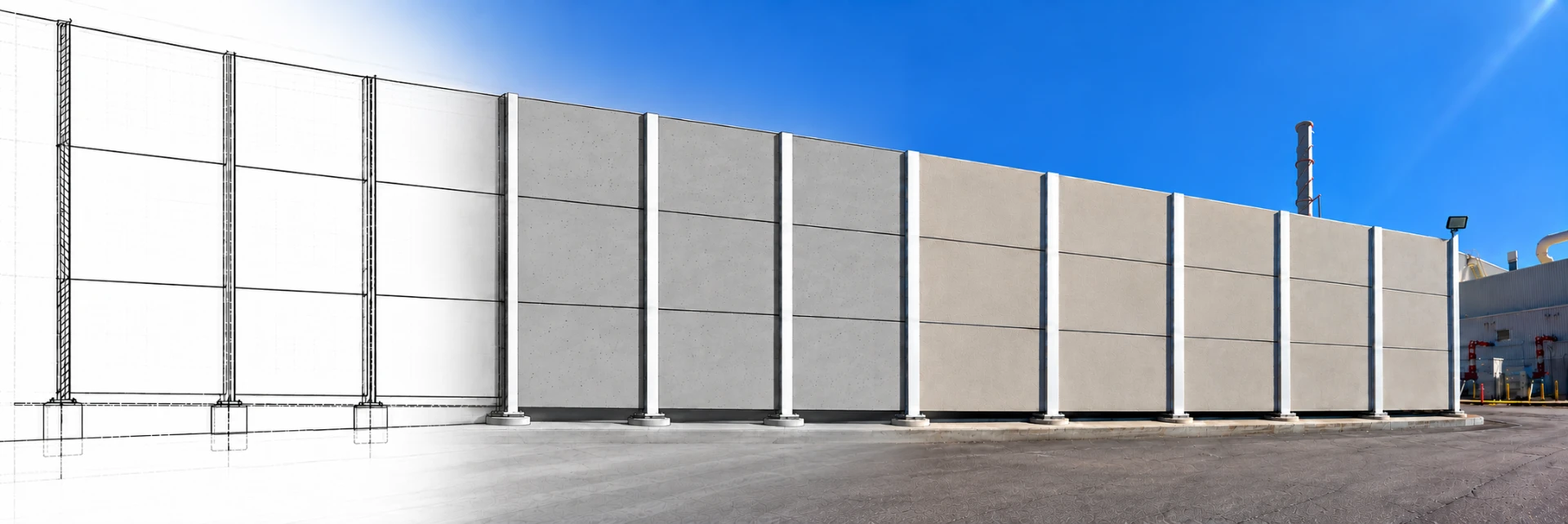

From Concept to Reality
Closing the distance between the drawing and the wall.
Every noise wall begins as an engineering drawing — geometry, structural loading, acoustics, aesthetics. The Infinity Wall System is built to make the distance between that design and the finished wall as short as possible: lighter panels, fewer loads, faster installation, and a finish that matches the vision.
System capability
Engineered around the realities of construction.

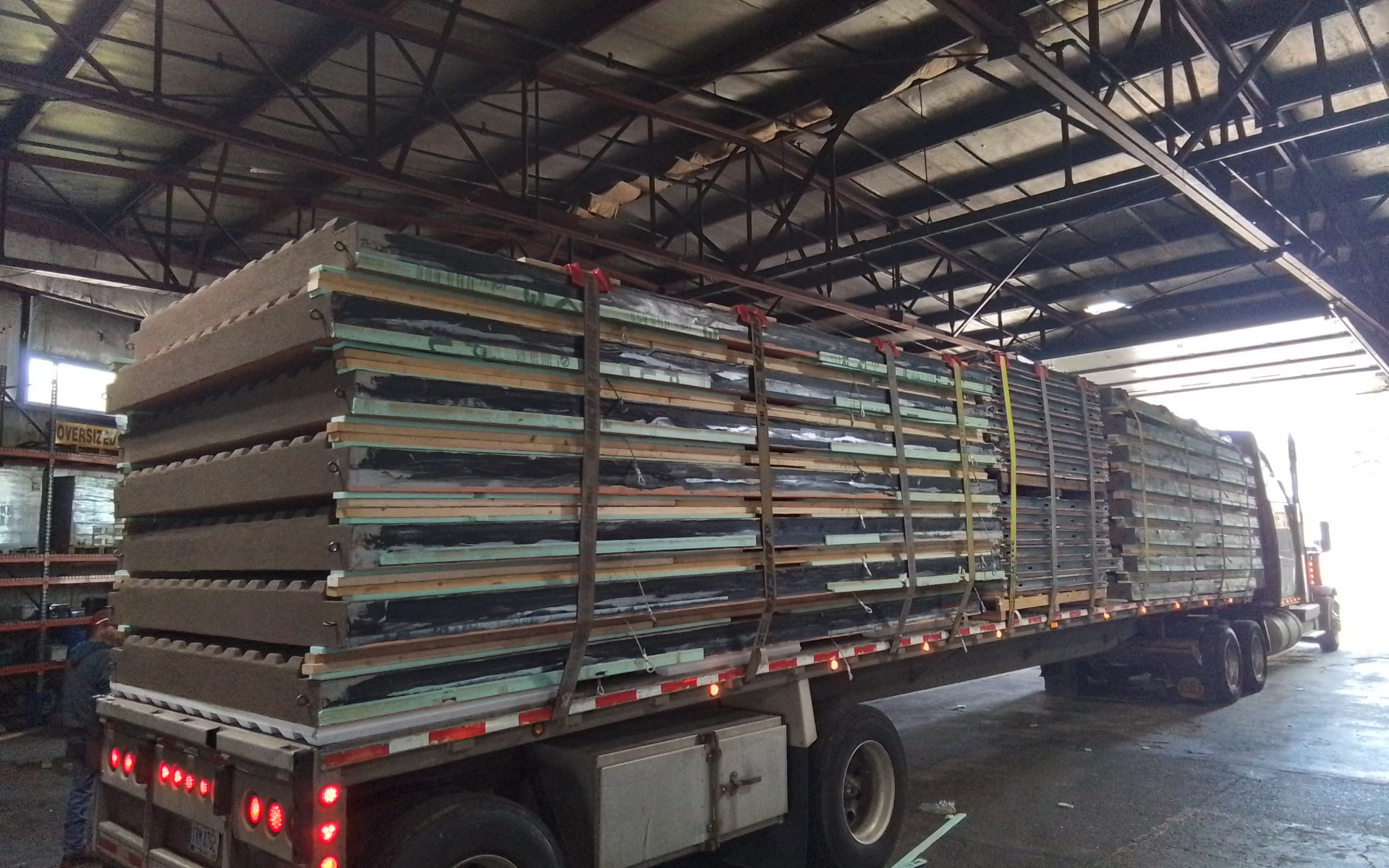

Transportation efficiency
3,456 SF PER LOAD TYPICAL
More wall per load reduces delivery count, staging area, and freight exposure across long hauls and constrained work zones.
Installation efficiency
864 SF PER PERSON PER DAY
Handling characteristics expand the range of feasible placement methods and support production inside short closure windows.
Reduced structural loading
8-13 LBS PER SF
Lower dead load applied to posts, foundations, parapets, and decks — critical on structure-mounted and rehabilitation work.
Repairability
ONSITE REPAIR
Panel-level repair and replacement supports maintenance without rebuilding full wall sections.
Service life
AASHTO LRFD 10TH EDITION + ASTM TESTING
Design requirements from AASHTO LRFD 10th Edition and applicable ASTM testing support project-specific durability and service-life evaluation.
Acoustical performance
STANDARD REFLECTIVE CONFIGURATION: STC 51 · NRC 0.10
The standard reflective Infinity Wall configuration is rated STC 51 per ASTM E90-09 (2016) and NRC 0.10 per ASTM C423-17. Project-specific acoustic requirements are reviewed with NWB.
Design flexibility
UNLIMITED COLORS AND TEXTURES
Unlimited colors and textures. Our aesthetic options are limited only by your imagination.
Warranty
STANDARD WARRANTY AVAILABLE
A standard warranty is available. Special warranty requests are also available.
See It Installed
Watch a panel go in — in real time.
No time-lapse, no editing tricks. This is the actual pace of an Infinity Wall System installation — the speed that keeps closure windows short and schedules intact.
Real-time footage of an Infinity Wall System panel installation.
Design freedom
One wall. Any aesthetic.
The wall shown here is a single 12-foot-tall, 24-foot-long Infinity Wall installation — finished to read as a series of 12-by-8-foot brick walls. This aesthetic was developed for a large retaining wall project whose drawings called for 8-foot wall sections. By building it as one continuous Infinity Wall instead, the project saved 80% of installation labor, plus the post material and labor for the added posts the original design required.
Color matching, texture, matching an existing wall run, custom geometry, three-dimensional forms, and architectural integration are all handled inside the system.
Explore Design Possibilities
A 12' × 24' Infinity Wall finished to look like 12' × 8' walls — 80% less installation labor, fewer posts.
Talk With NWB
Have a noise wall project? Bring us in early.
Whether you're designing, estimating, specifying, or preparing to build, NWB can help evaluate whether the Infinity Wall System fits the project.
